Powerwerks 4 Channel Mixer

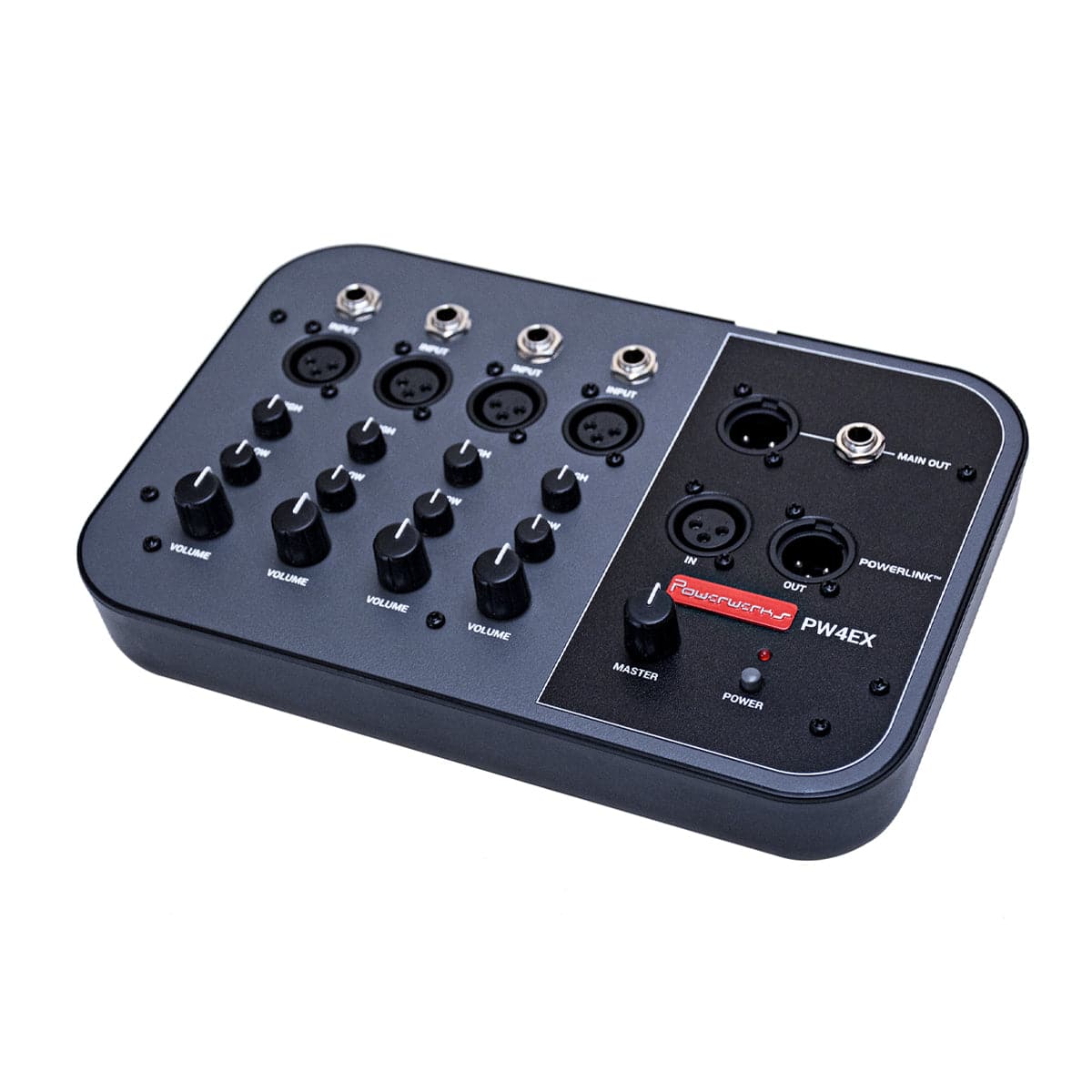

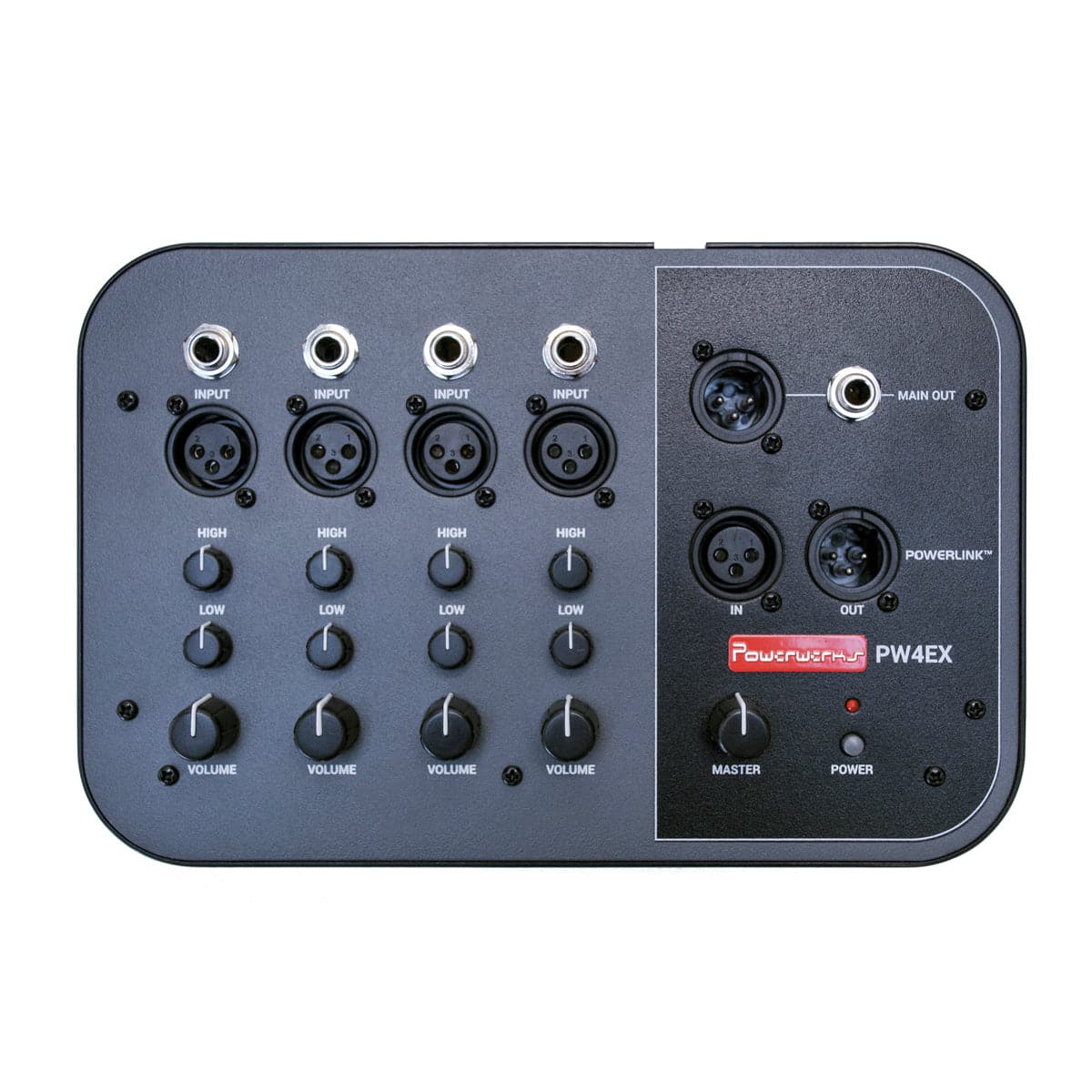

Powerwerks PW4EX is a 4 Channel MIC/LINE mixer with a MONO output. The PW4EX model draws on decades of electronic design and manufacturing experience at Powerwerks. This model was built from the ground up, offering useful features, high signal-to-noise ratio and reliable performance.
The PW4EX works as standalone mixer also. Use the MAIN XLR or 1/4" OUT to send a 'sub mix' to any powered speaker or input of another mixer. (4 drum mics for example). The PW4EX gives you extra channels you need for a perfect mix.
Features
• 4 individual Mic/Line Inputs
• Phantom Power
• Compact size, very light, only 2 lbs
• Rugged, Gig-ready Design
• POWERLINK IN/OUT for expanding your Powerwerks PA System
Specifications
Inputs
Mic XLR Balanced. Line level 1/4 Unbalanced, Nominal line level of -10 dBV
Frequency Response
43 Hz to 20 kHz: Channel volume knobs set at 3/4 full scale
Signal to Noise Ratio
74 dB, All controls set at maximum unclipped level, bandwidth 22 kHz
Signal Gain @ 1 kHz
21 dB: Line input to master output
38 dB: MIC input to master output
Channel EQ (high, low)
2.6 kHz and above, 0.9 kHz and below
Low boost/cuor a line level input from another audio product
OUAvailable on all MIC inputs. Current limited to 5 mA
Power Requirements
18 Vdc, Wall adapter is included
