Fender

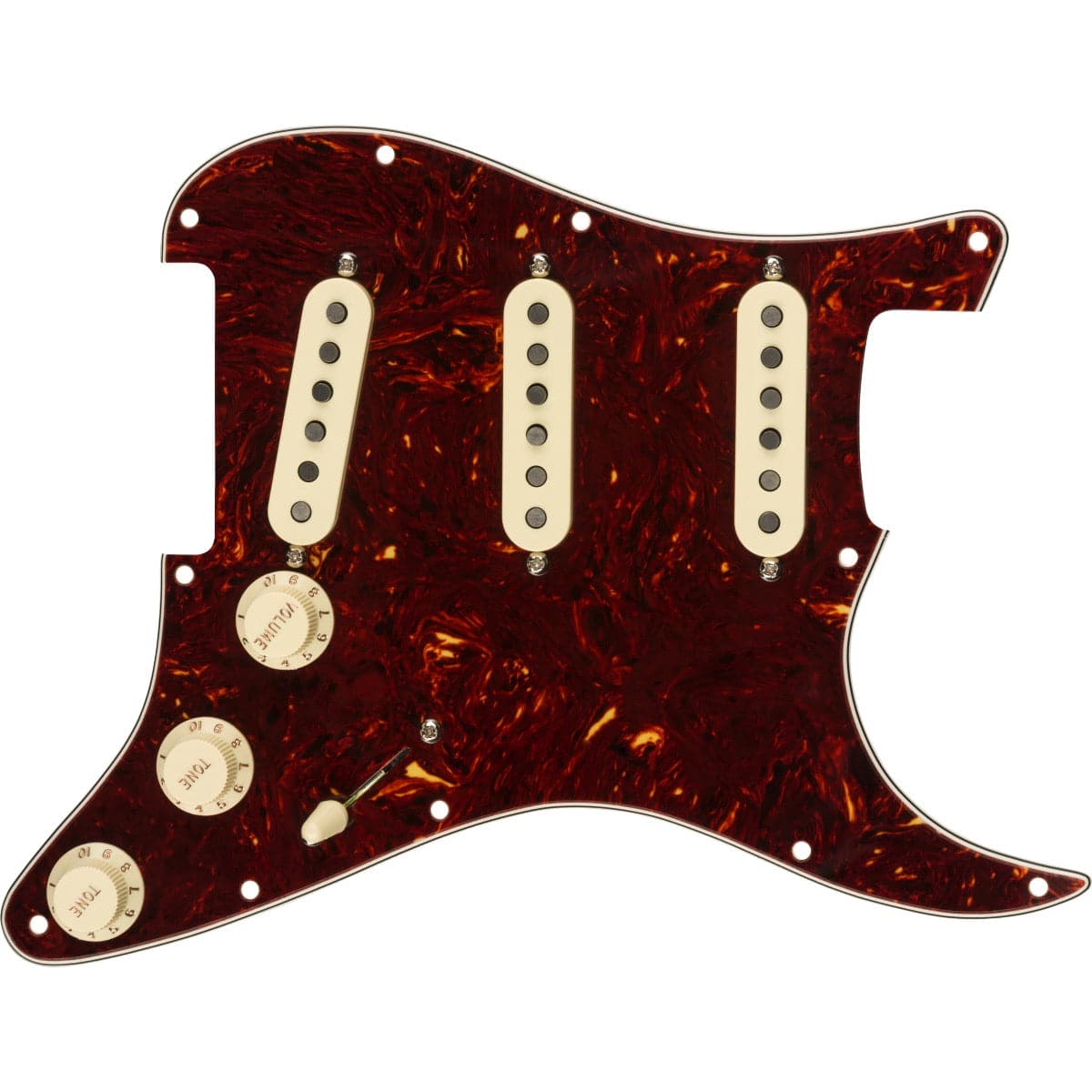

Fender Loaded Pre-Wired Strat Pickguard - Tex-Mex SSS - Tortoise Shell - 11 Hole
Pickup currently unavailable at Store
Fender Loaded Pre-Wired Strat Pickguard - Tex-Mex SSS - Tortoise Shell - 11 Hole
Store
Pickup currently unavailable
6 Quiet Street
Bath BA1 2JS
United Kingdom

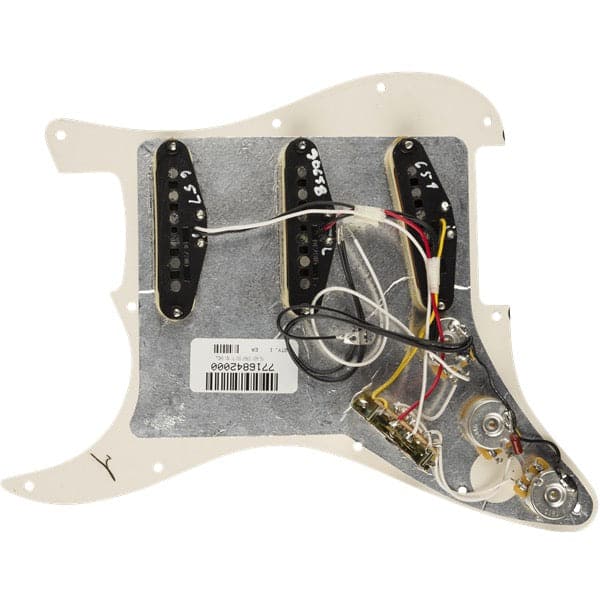

Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as our iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you’re ready to rock with pure Fender sound.
Bobbin Material
Nylon
Color
Shell
Commodity Code
9209940000
Country Of Origin
MX
DC Resistance
Neck: 6.5K, Middle: 6.4K, Bridge: 7.4K
Dimensions
2.25x10.75x13.50 IN
Lead Wire
Vinyl-covered
Magnet Type
Alnico 5
Magnet Wire
Polysol-coated
Model #
0992343500
Model Name
Pre-Wired Strat Pickguard, Tex-Mex SSS, Tortoise Shell 11 Hole PG
Pole Pieces
Staggered
Refinement Pickups
Single Coil
Series
Pre-Wired Pickguards
Shielded
Yes
Weight
1.50 LB
inductance
Neck/Middle: 2.75 Henries, Bridge: 3.7 Henries
