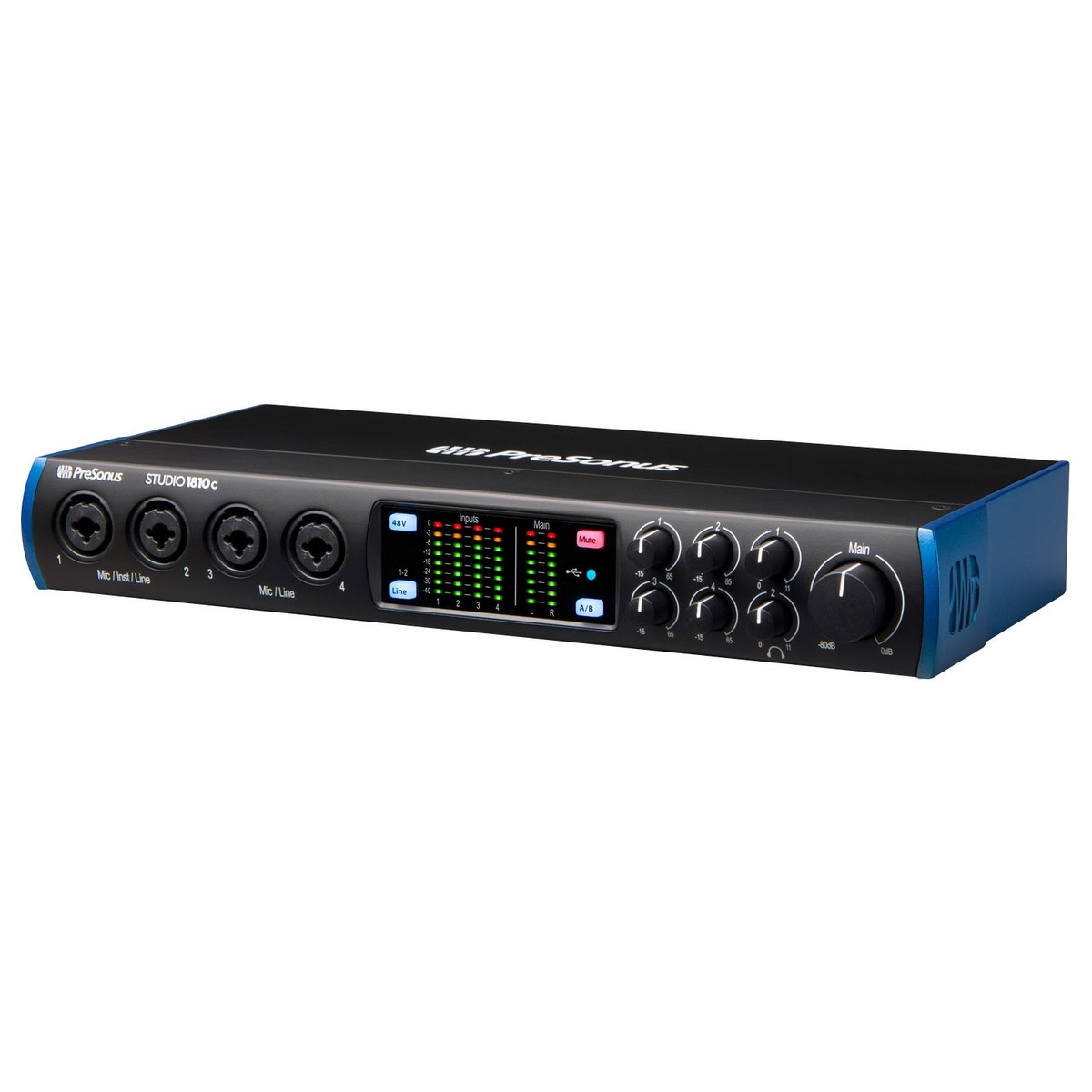

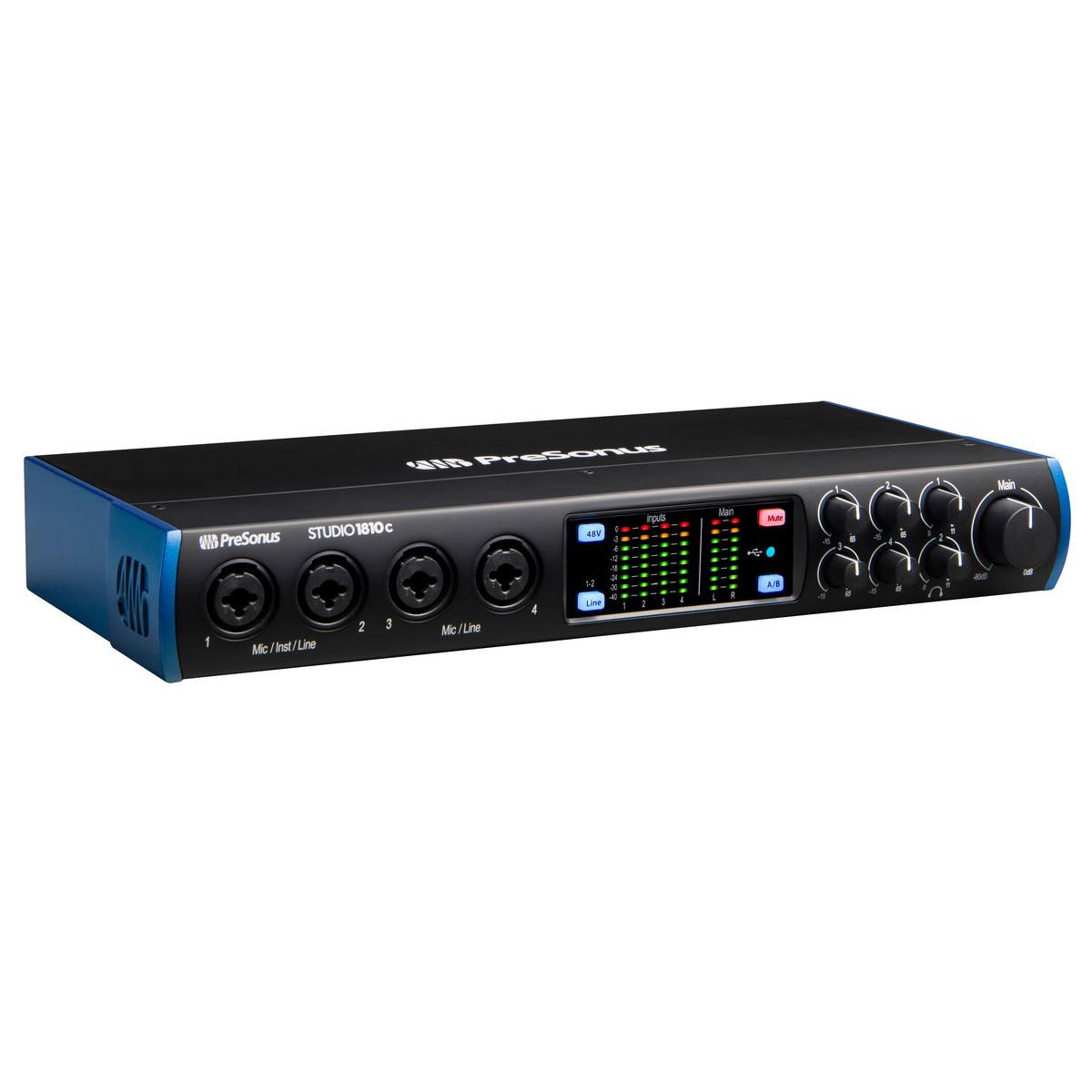

PreSonus Studio 1810C Audio Interface

You don’t need to sacrifice mobility for connectivity. Take amazing studio-quality sound and flexible input options on the road with the PreSonus Studio 1810c audio interface.

With four of PreSonus’ lauded XMAX analog mic preamps, two pristine instrument preamps, six balanced line-level inputs, and an ADAT input to add 8 more channels whenever you need them, the Studio 1810c is a compact recording powerhouse housed in a rugged, roadworthy chassis.

Expandable up to 18 simultaneous inputs and 8 outputs, the Studio 1810c outputs offer flexible routing and zero-latency DSP-based monitor mixing from both Studio One® Artist and UC Surface.

Features

• 24-bit/192 kHz, USB-C 18x8 audio interface (8x6 at 192 kHz)
• 2 mic/instrument/line inputs and 2 mic/line inputs all with XMAX Class A mic preamps and +48V phantom power
• 4 back panel ¼” TRS balanced line inputs
• 8 channels of ADAT Optical input (4 channels at 96 kHz)
• 2 ¼” TRS balanced DC coupled main outputs with level control and dedicated mute button
• 4 ¼” TRS balanced DC coupled line outputs
• 2 headphone outputs with A/B switching on headphone output 1
• LED metering for all analog inputs and main outputs
• S/PDIF and MIDI I/O
• Flexible routing, zero-latency monitor mixing, and control-room integration with included Studio One Artist
• Monitor mix control with free UC Surface for macOS®, Windows®, iPad®, and Android™
• USB-C to USB-C and USB-C to USB-A cables included
• Studio Magic Plug-in Suite included
• Ableton Live Lite included

Specifications

General

• Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192 kHz
• Converter Resolution: 24 bit
• Converter Dynamic Range: 114 dB
• Converter Dynamic Range: 114 dB

Microphone Inputs

• Maximum Level: +16 dBu, min gain
• Gain Range: 80 dB
• Frequency Response: 20 Hz - 20 kHz (unity gain)
• Dynamic Range: 110 dB (A-wtd, min gain)
• THD + N: 0.005 percent (1 kHz, 0dBu, unity gain)
• EIN: -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
• Input Impedance: 1400Ω
• Phantom Power: +48 VDC (10 mA total)

Line Inputs

• Maximum Level: +21 dBu (balanced, min gain)
• Gain Range: 40 dB
• Frequency Response: 20 Hz-20 kHz (unity gain)
• Dynamic Range: 110 dB (A-wtd, min gain)
• THD + N: 0.005 percent (1 kHz, +18 dBu, min gain)
• Input Impedance: 10 kΩ

Instrument Inputs

• Maximum Level: +15 dBu (unbalanced, min gain)
• Gain Range: 80 dB
• Frequency Response: 20 Hz - 20 kHz (min gain)
• Dynamic Range:112 dB (A-wtd, min gain)
• THD + N: 0.020 percent (1 kHz, +10 dBu, min gain)
• Input Impedance: 1 MΩ

Main Outputs

• Type: ¼" TRS female, DC Coupled
• Maximum Level: +18 dBu, balanced
• Frequency Response: 20Hz - 20kHz (unity gain)
• Dynamic Range: 108 dB (A-wtd, unity gain)
• THD + N: 0.004 (1 kHz, -1 dBFS, unity gain)

Line Outputs

• Type: ¼" TRS Female, DC Coupled
• Maximum Level: +18 dBu (balanced)
• Frequency Response: 20 Hz - 20 kHz (±0.1 dB, unity gain, 48 kHz)
• Dynamic Range: 108 dB (A-wtd)
• THD + N: 0.004 percent (1 kHz, -1 dBFS)

Headphone Outputs

• Maximum Power: 150 mW/channel (60Ω load)
• Frequency Response: 20 Hz - 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
• Dynamic Range: 103 dB (A-weighted, 1 kHz, unity gain)
• THD + N: 0.250 percent (1 kHz, 150 mW, unity gain)
• Impedance Working Range: 32Ω to 300Ω

Physical

• Dimensions (HxWxD): 1.75" (44 mm) x 12.5" (317 mm) x 5.5" (144 mm)
• Weight: 1.45kg (3.2lbs.)
